The following article illustrates how to use the cycle editing feature.

1. What is the cycles management feature?

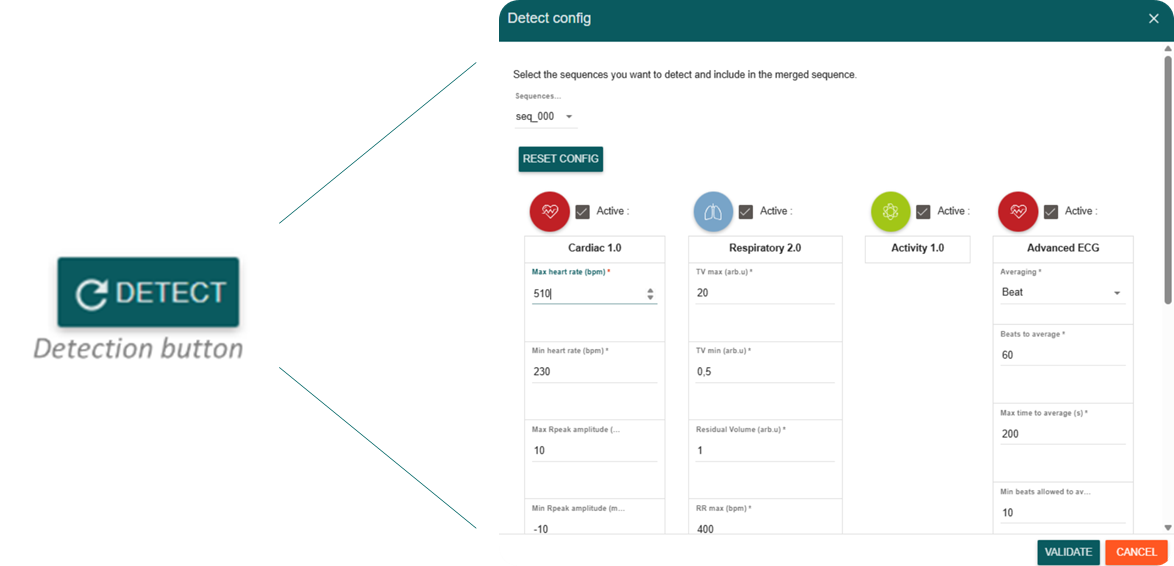

During data processing, algorithms detect cardiac and respiratory cycles by placing event markers. Based on these, physiological parameters are calculated. The detection setting can be adjusted by the user in the Detection parameters window.


Sometimes, some cycles may be incorrectly detected - for example :
      - Missing markers on cycles
      - Poorly placed markers on cycles
      - Markers on non-physiological segments (e.g. movement artifacts)

In this case :
- If most cycles are considered "incorrectly detected", we recommend re-running the detection with adjusted parameters, as illustrated in this article on adjusting the detection of the respiratory signal.

- However, if only a few cycles are affected, you can manually correct using the "Edit cycle" feature. This feature allows you to add, remove, or move events and cycles on an existing MERGE session detection. Once the modifications are validated, the physiological parameters will be automatically recalculated.
> The use of this feature will be illustrated in this article.

2. How to modify the event detection?

To adjust the recording signal detection :

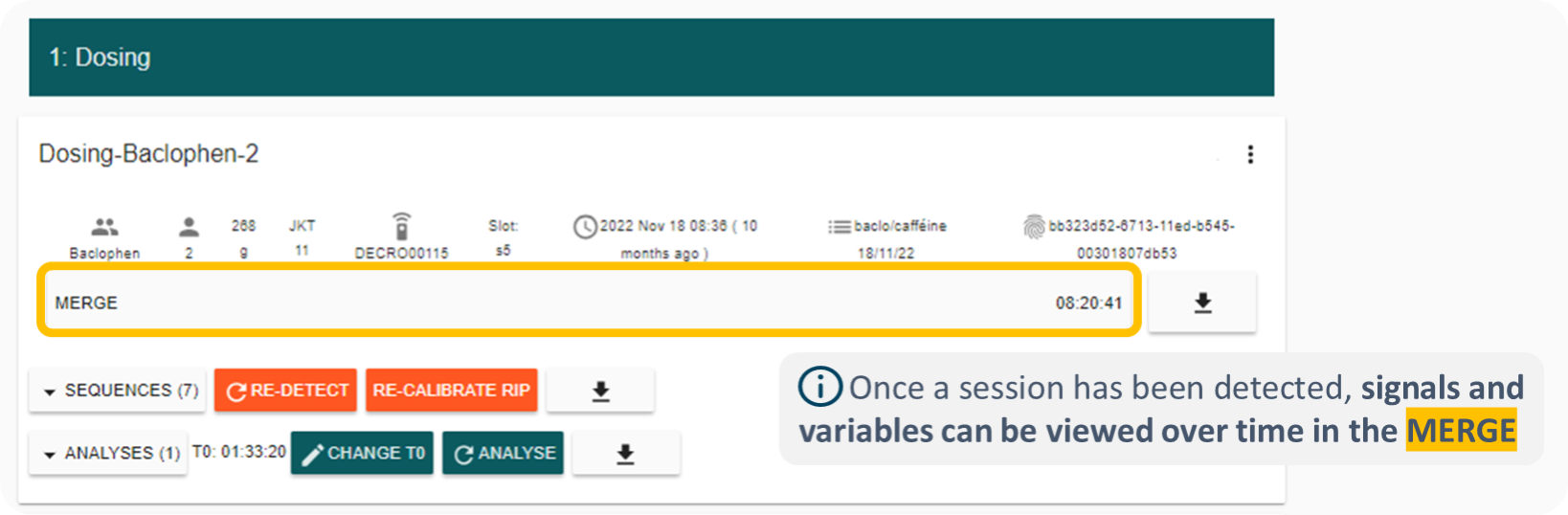

      > Open the merge visualization of the desired session.

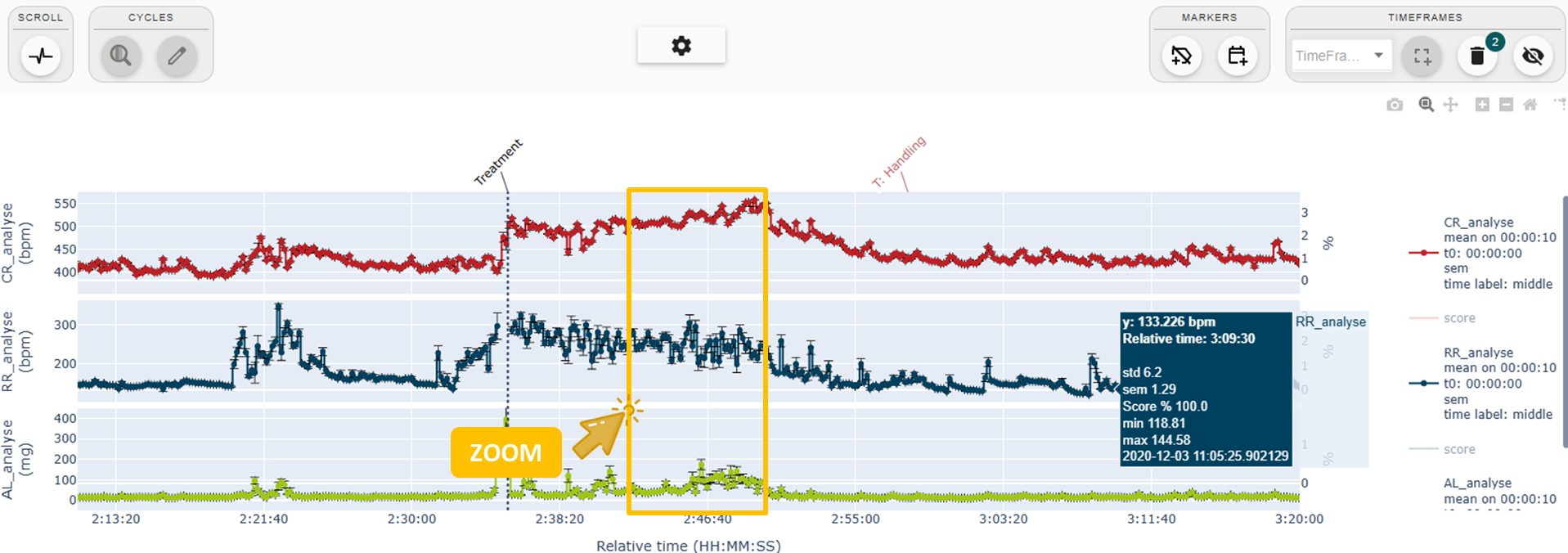

      > Choose the target area and zoom in on it.

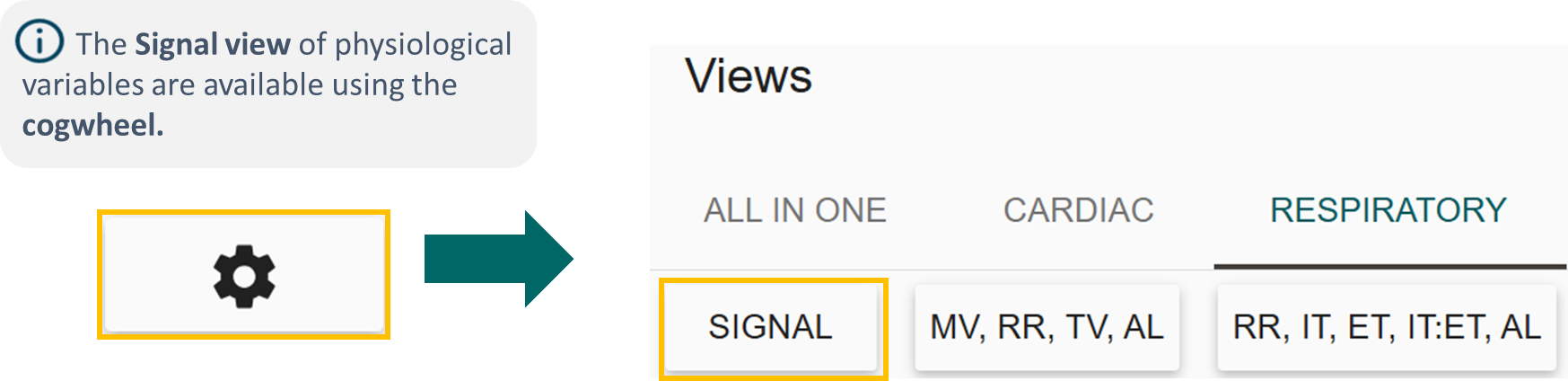

      > Open the cogwheel at the top of the merge.
      Choose the "SIGNAL" view, in CARDIAC or RESPIRATORY view.


Avertissement
The SIGNAL view only appears when an appropriate time (time base < 20 min) window is selected and zoomed in.

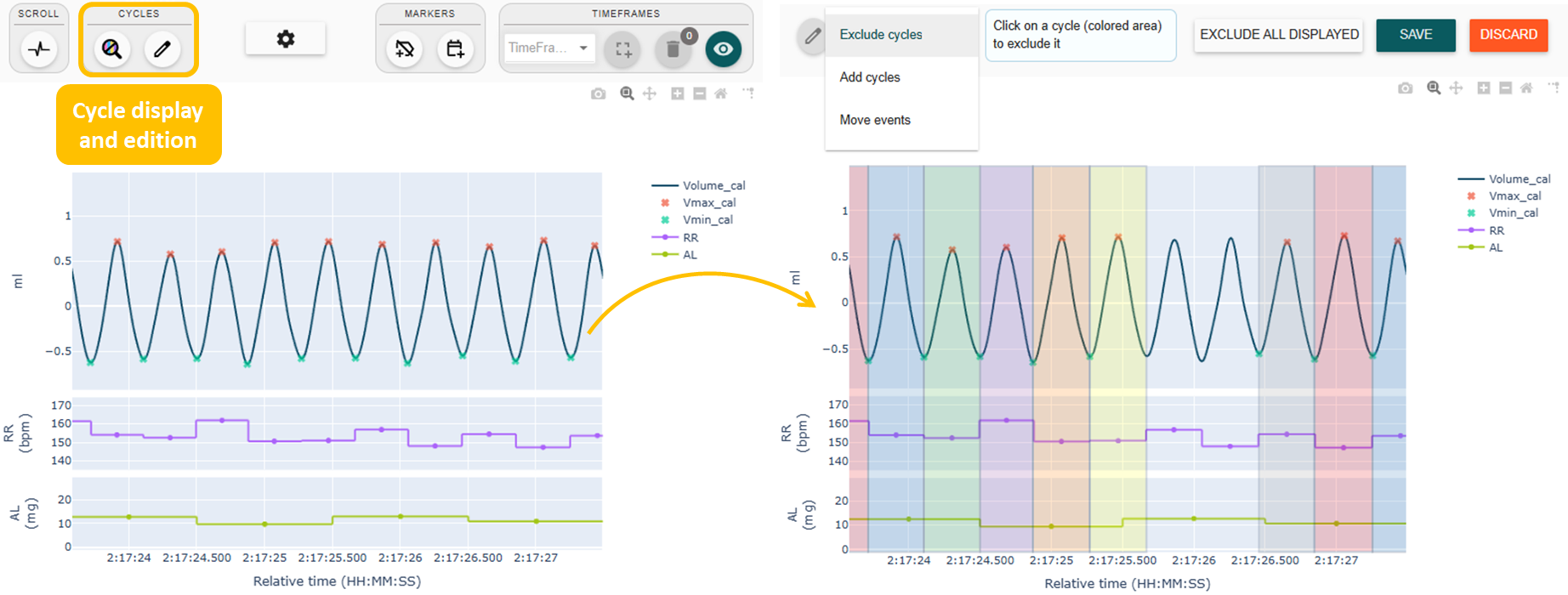

After that, you will see that the "CYCLES" features, on the left side of the view banner, is available allowing you to start editing cycles.

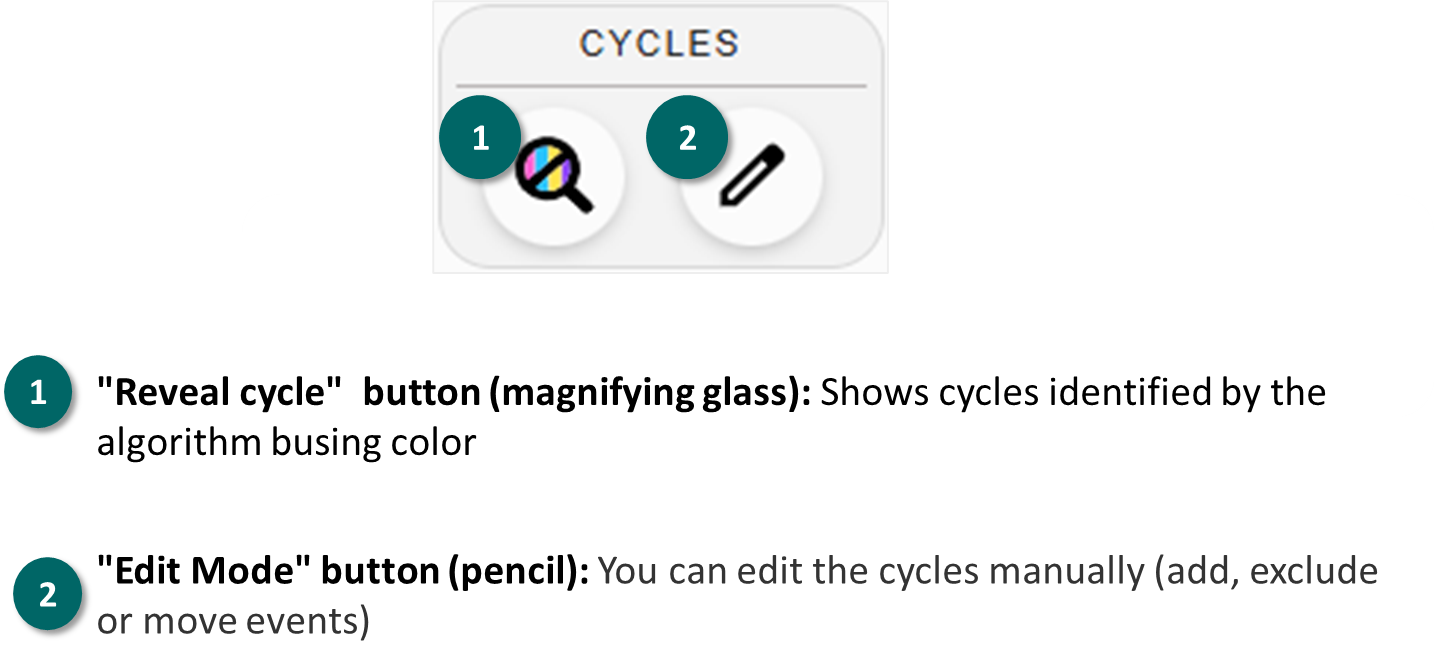

> By clicking on the EDIT MODE button, the view will adapt to allow you to delete, modify and/or add detected cycles.

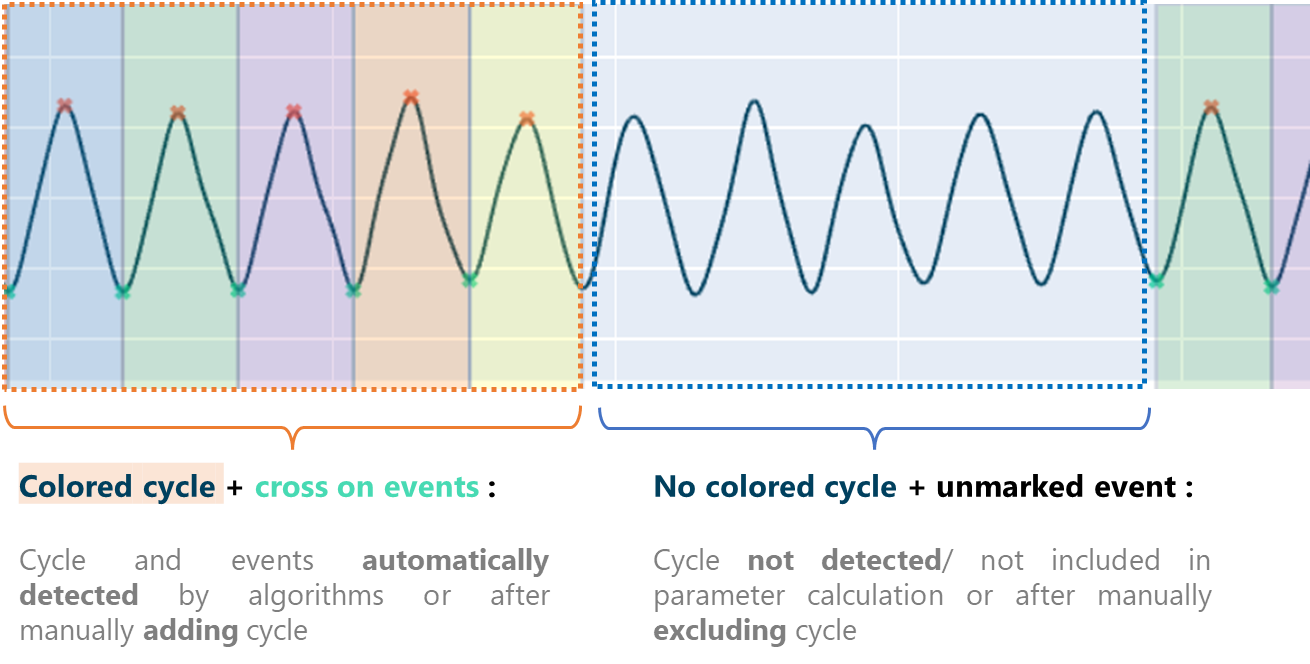

> Cycles are color-coded when using EDIT OR REVEAL MODE.

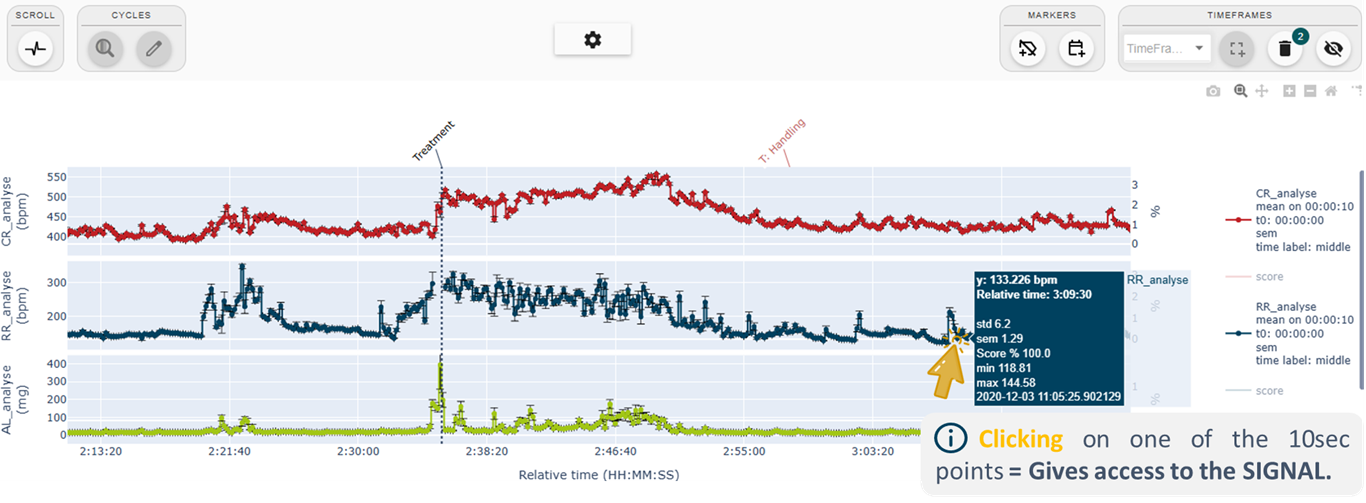

Cycle editing can also be performed by clicking on a calculated parameter point to open the "INSPECT" 10-second view of the corresponding signal:

The following sections detail the actions possible with EDIT MODE. The principle is the same in the SIGNAL or INSPECT view.
Regardless of the modification made. You can save your changes with the SAVE button and cancel them with the DISCARD button.

 a. How to Exclude cycles ?

There are two ways to exclude cycles :
  1. Exclude cycles one by one :
In the SIGNAL view and once the Edit mode is enabled :
      > Activate "Edit mode".
      > Select the "Exclude cycles" choice from the drop-down menu [1].
      > Click on each cycle you want to exclude (colored area).

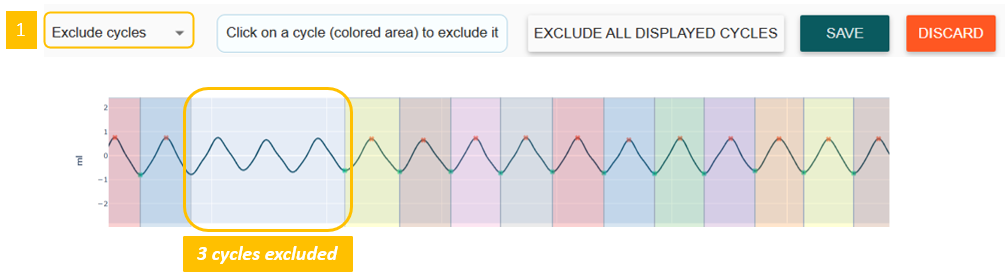

SOFTWARE :As shown in the following example, three colored cycles were excluded by clicking on them.
  1. Exclude all cycles from inspection :

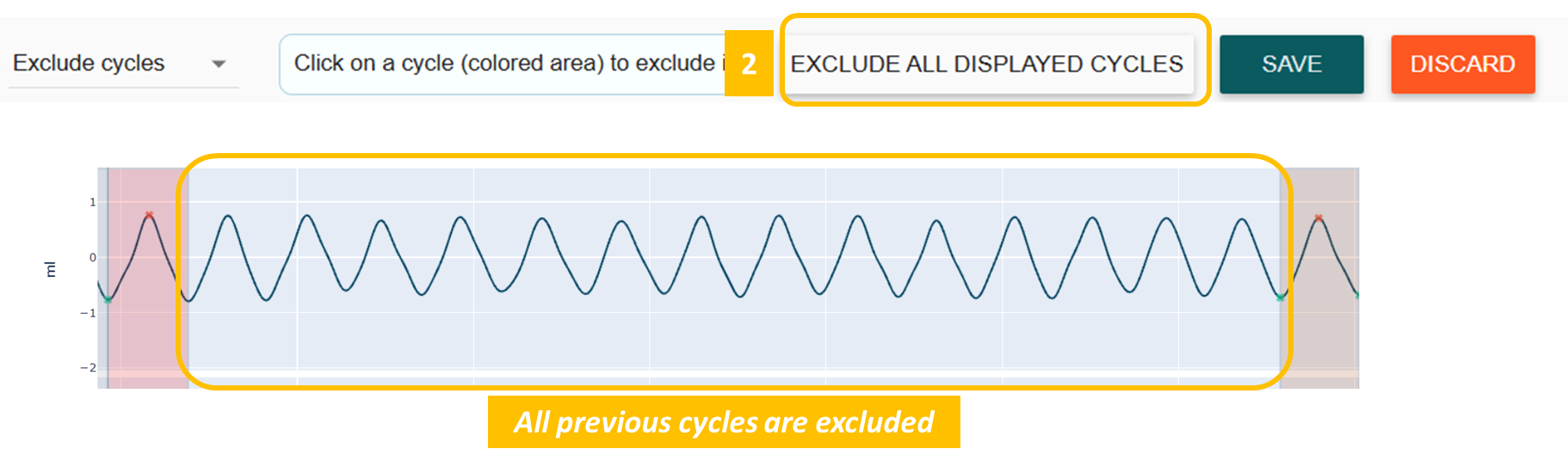

       > Click on "EXCLUDE ALL DISPLAYED CYCLES" [2] to remove all detected cycles in the current view.

SOFTWARE : The colored cycles detected by the algorithms are no longer marked.

           > Click on "Save" button to validate modification.

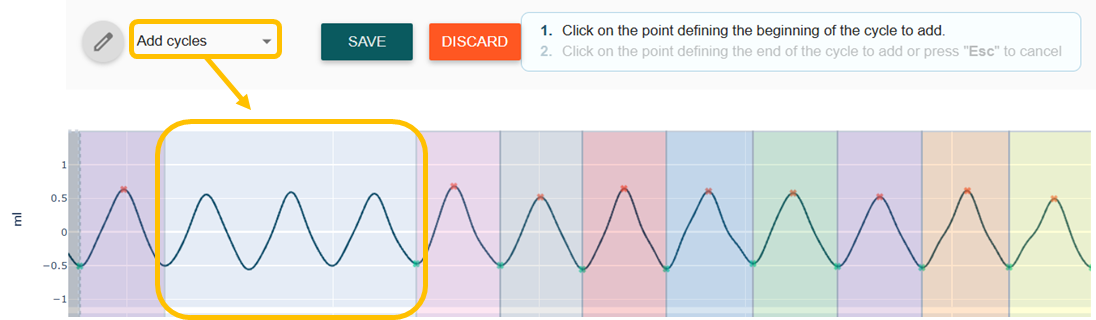

 b. How to add cycles ?

To add an undetected cycles in the detection :
      > Select  "Add cycles" from the drop-down menu.

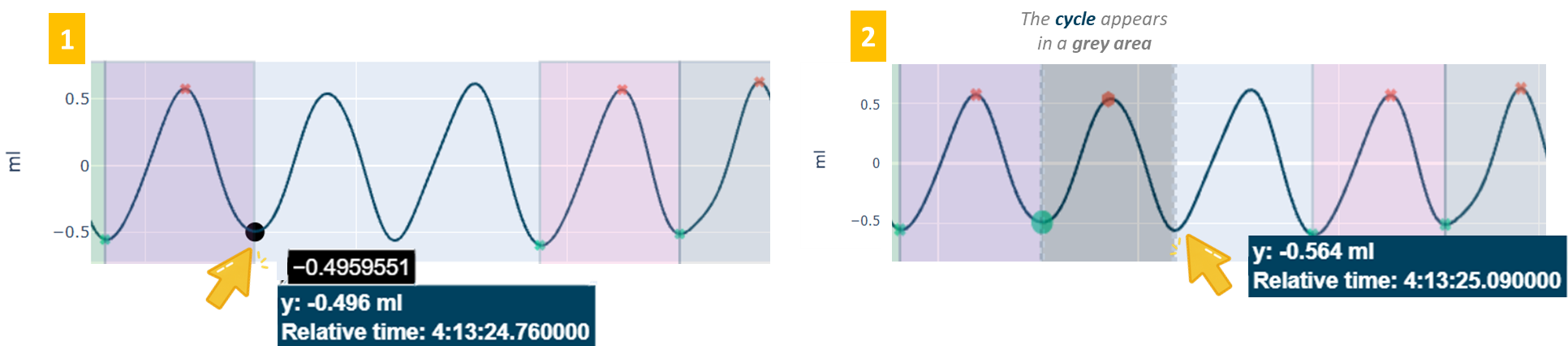

      > Click on the point defining the beginning of the cycle to be added [1].
      > Click on the point defining the end of the cycle to be added [2].
      > Repeat as needed.

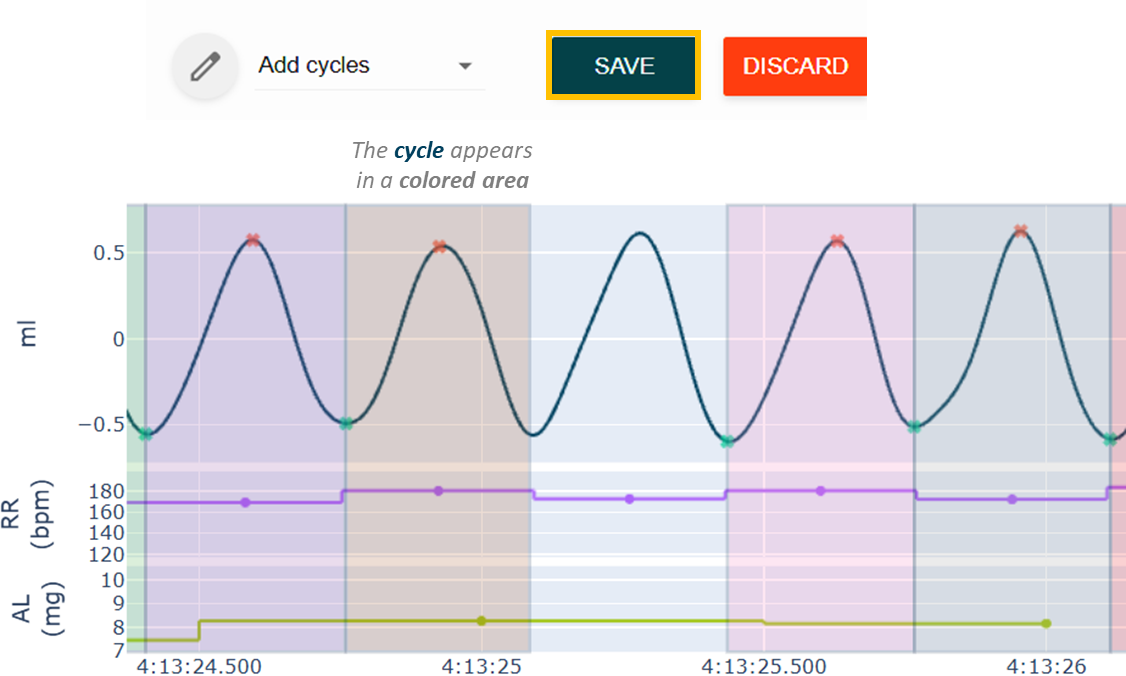

Finally, click on the "SAVE" button : the added cycles are taken into account in the detection.

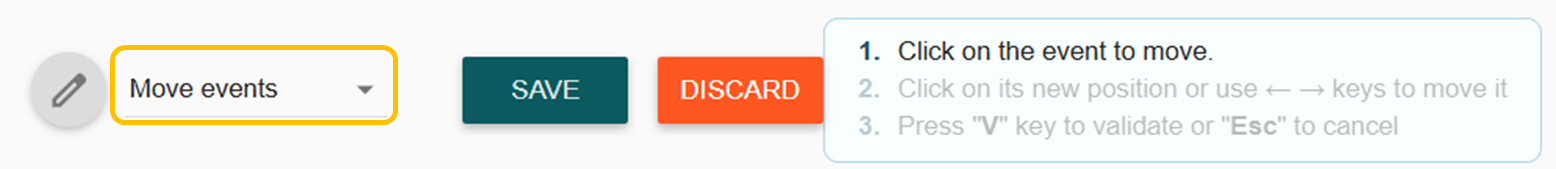

 c. How to Move event ?

To move misdetected events :
      Select "Move events" from the drop-down menu.



      > Click on the event to be moved.
      > Click the desired new position or use ← → (arrow keys) to move it.
      > Press the V key to validate or Esc to cancel. Make sure to disable Caps Lock on your keyboard.
      > Finally, don't forget to click on the "SAVE" button.

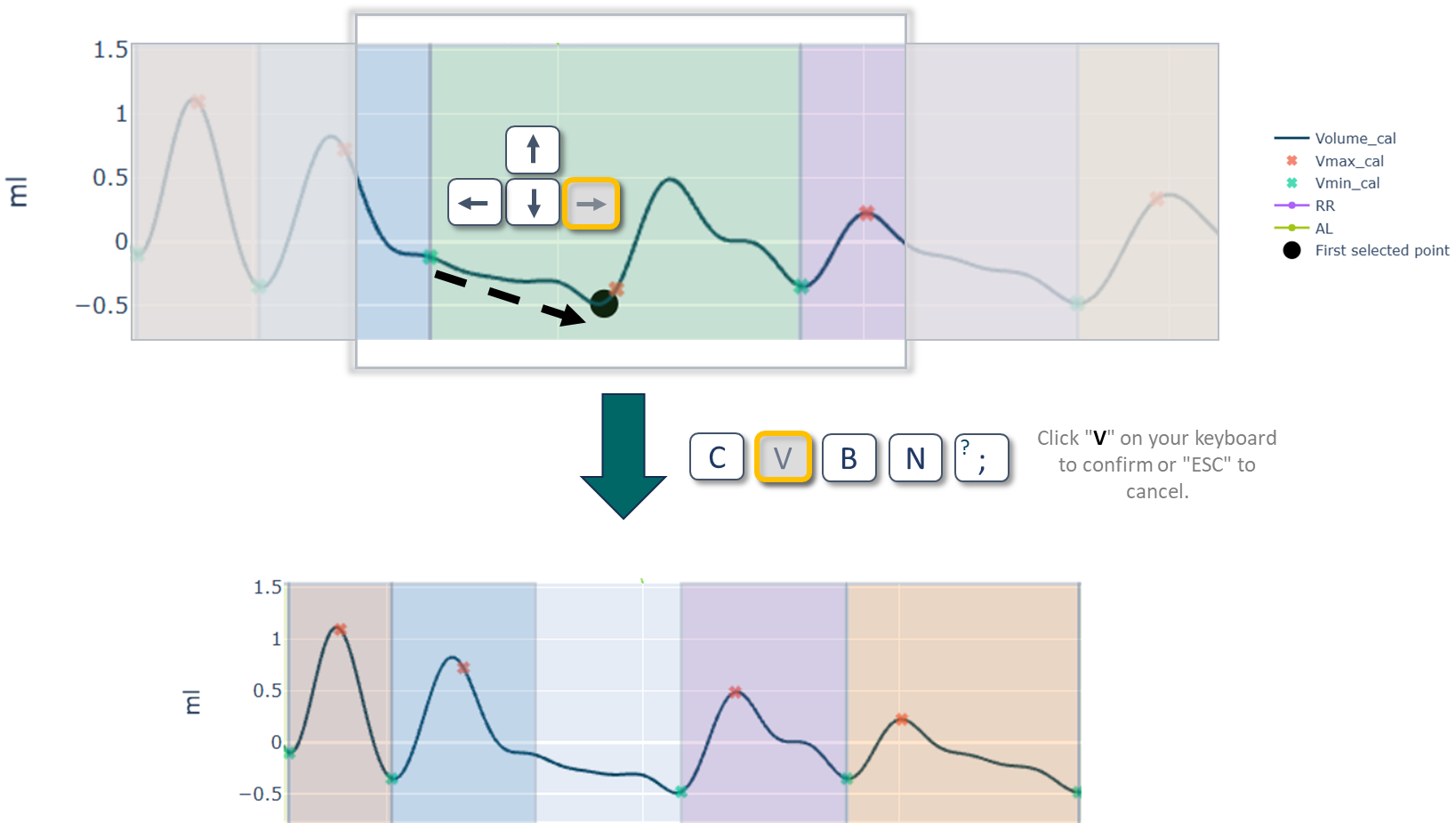

SOFTWARE : In this example, the Vmax and Vmin events are replaced before validation.

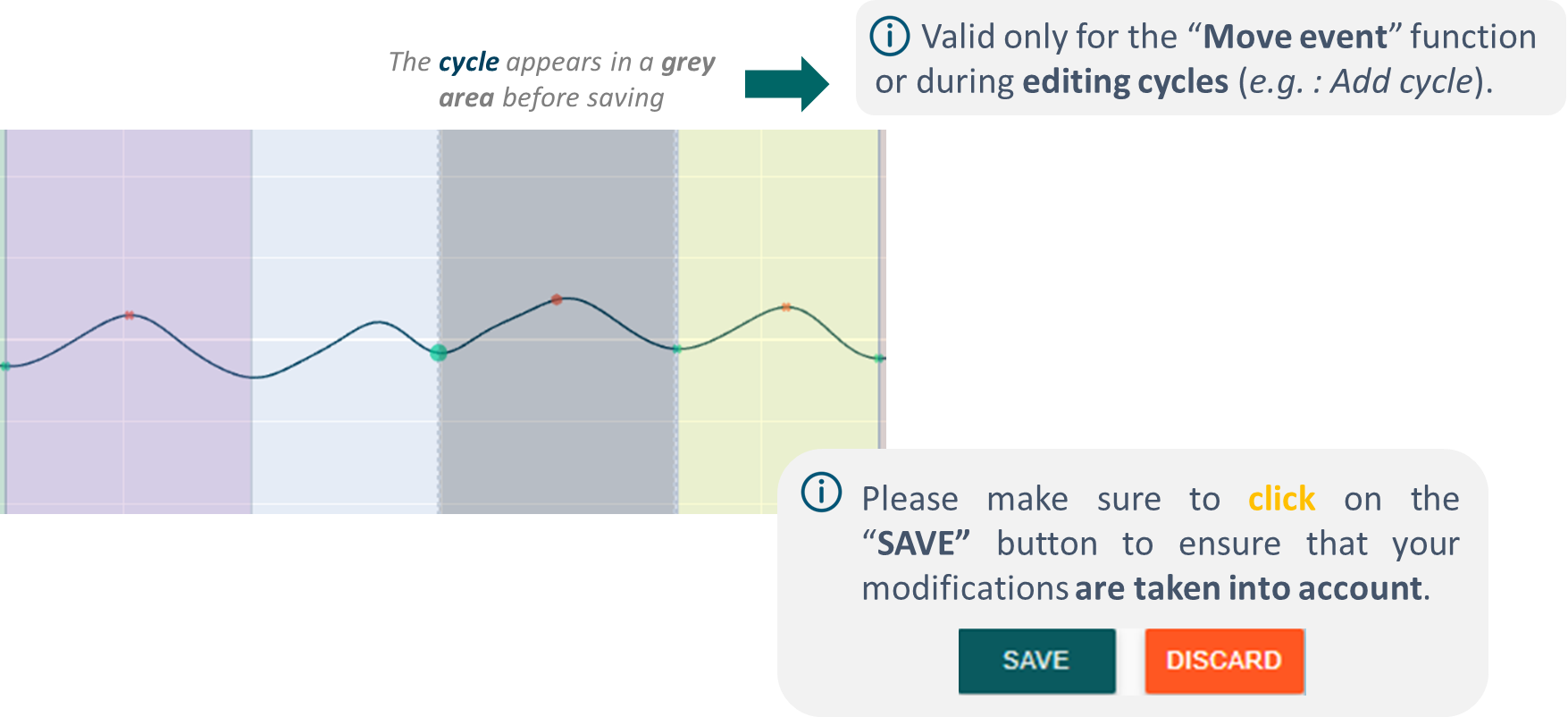

SOFWARE During the edition or the addition of cycles, these appear gray until validated :



Info

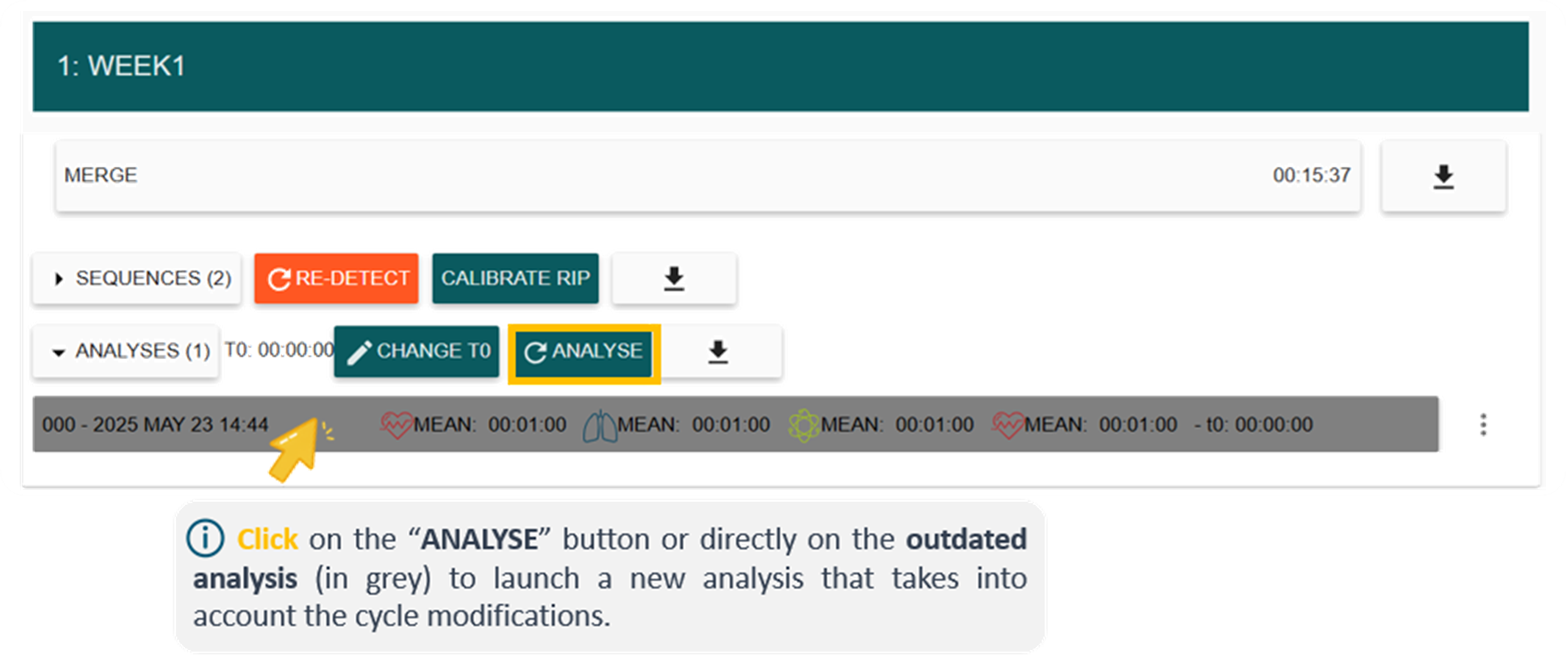

Please note that updating the detection will deactivate the existing analysis, which will have to be redone, simply by clicking on it.



For more details on these features, please contact us at : support@etisense.com
